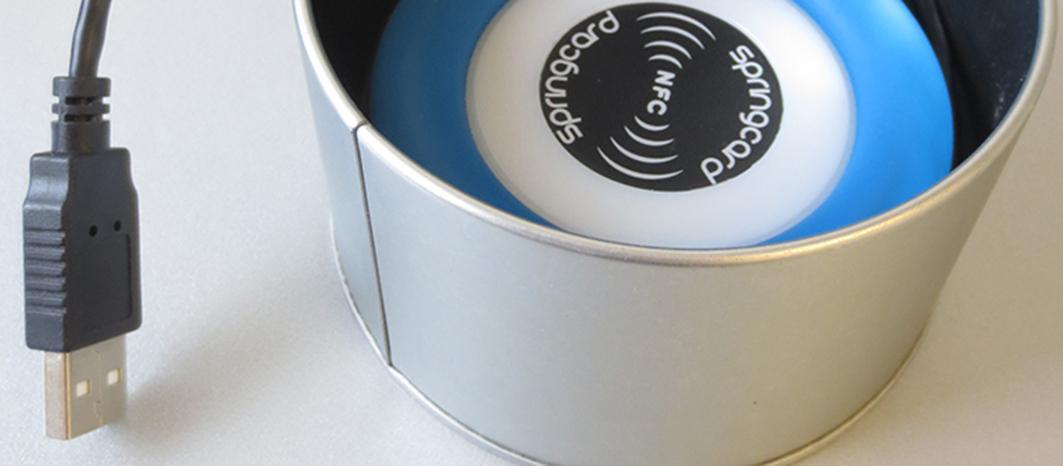

USB interface & PC/SC NFC reader (coupling device)

The NFC’Roll is a practical and uncommun-designed NFC coupler. It includes 3 modes:

  • read/write mode (NFC-A, NFC-B et NFC-F)
  • card emulation mode (NFC-A)
  • peer-to-peer mode (NFC standards)

The NFC’Roll is a ready-to-use product to emulate a Tag or send a message through NFC (peer-to-peer NFC beam).

Sending light and sound signals, easy to drive thanks to applications, the NFC’Roll perfectly suits to interact withe users.

OEM version (no housing - bare card) is available. Please contact us.

DISCOVER PC/SC

Introduction to PC/SC and ​Quickstart for PC/SC

LINKS

Link to Firmware Upgrade here.

Demonstration video here: card emulation mode

KEY FEATURES

  • NFC Forum Tag emulation (type 4)
  • NFC Beam (push NDEF through SNEP over LLCP) provided as a free software library (C#)
  • PC/SC USB driver for Windows, Linux and other Unix (including MacOS X)
  • Directly powered by USB, cable included
  • Sober anti-skid housing
  • 2-year limited warranty
  • RoHS & WEEE compliant (environmental protection)
Standards
  • Carrier frequency: 13.56MHz
  • ISO 14443 (1, 2, 3 and 4, both type A and type B): Proximity Coupling Device (PCD)
  • ISO 21481 (ECMA 352): the device is able to communicate with any NFC object running in card emulation mode
  • ISO 18092 / NFC peer-to-peer (initiator, passive communication mode only)
  • Coupler's firmware embeds T=CL protocol (ISO-DEP), 256-byte frames
RF Bitrate
  • 106kbit/s (ISO 14443, NFC-A & NFC-B), 212 or 424kbit/s (FeliCa, NFC-F)
Supported cards/tags/labels
  • NXP Mifare UltraLight, NTAG (NFC Forum T2T), Mifare Classic, Mifare Plus, Desfire, SmartMX...
  • Infineon SLE66 family
  • Texas Instrument my-d proximity
  • Innovision Jewel, Topaz (NFC Forum T1T)
  • FeliCa Lite, Lite-S (NFC Forum T3T)
  • Calypso (CD97, CD21, GTML, etc), Innovatron radio protocol "14443 B'"
  • APDU interpreter, giving easy access to memory contactless cards (NFC Forum Tags, Mifare, ICode and others) through classical READ BINARY and UPDATE BINARY commands
Firmware upgrade
  • In-field, no physical action on the device using SpringCard FUU application and Atmel USB DFU driver
Antenna
  • Integrated
Host interface
  • USB 2.0 full-speed (12Mbit/s), compliant with USB 1.1 and 3.0
  • PC/SC v2 compliant - USB CCID profile
  • PC/SC driver for Windows Vista/7/8/10 (32 and 64 bits)
  • Supported by PCSC-Lite open-source PC/SC stack and driver on Linux and Mac
Software integration / development
  • Free SDK for SpringCard access control readers
Power
  • Powered by USB (5V DC)
Connector
  • USB type A, 1.8m cord
