Contactless RFID/NFC coupler, serial interface, for automotive applications

Request yours today!

The Prox’N’Drive is a contactless reader/writer designed for car fleet management or car-sharing.

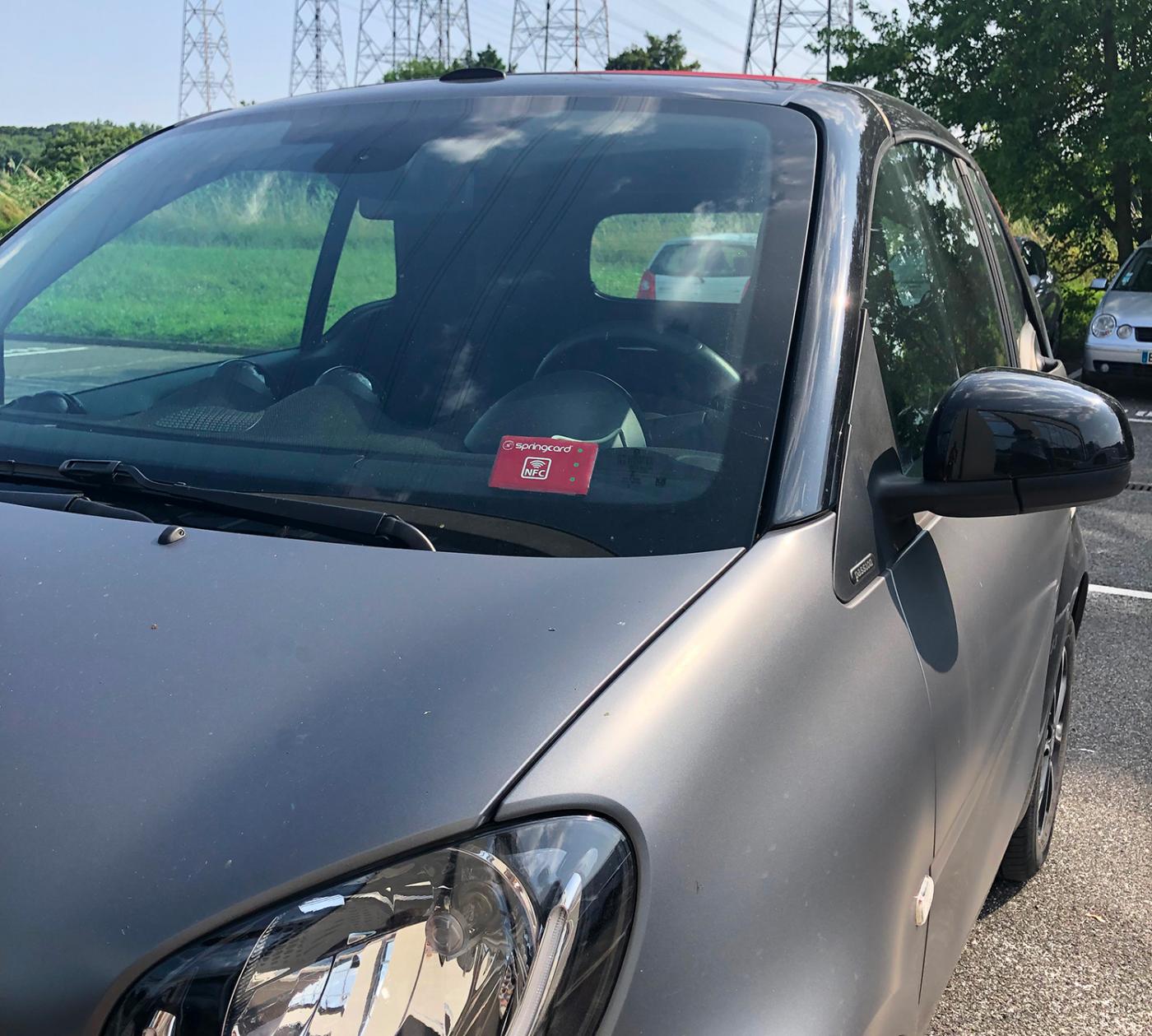

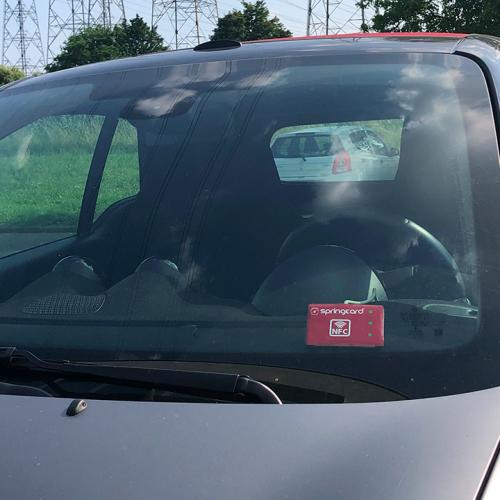

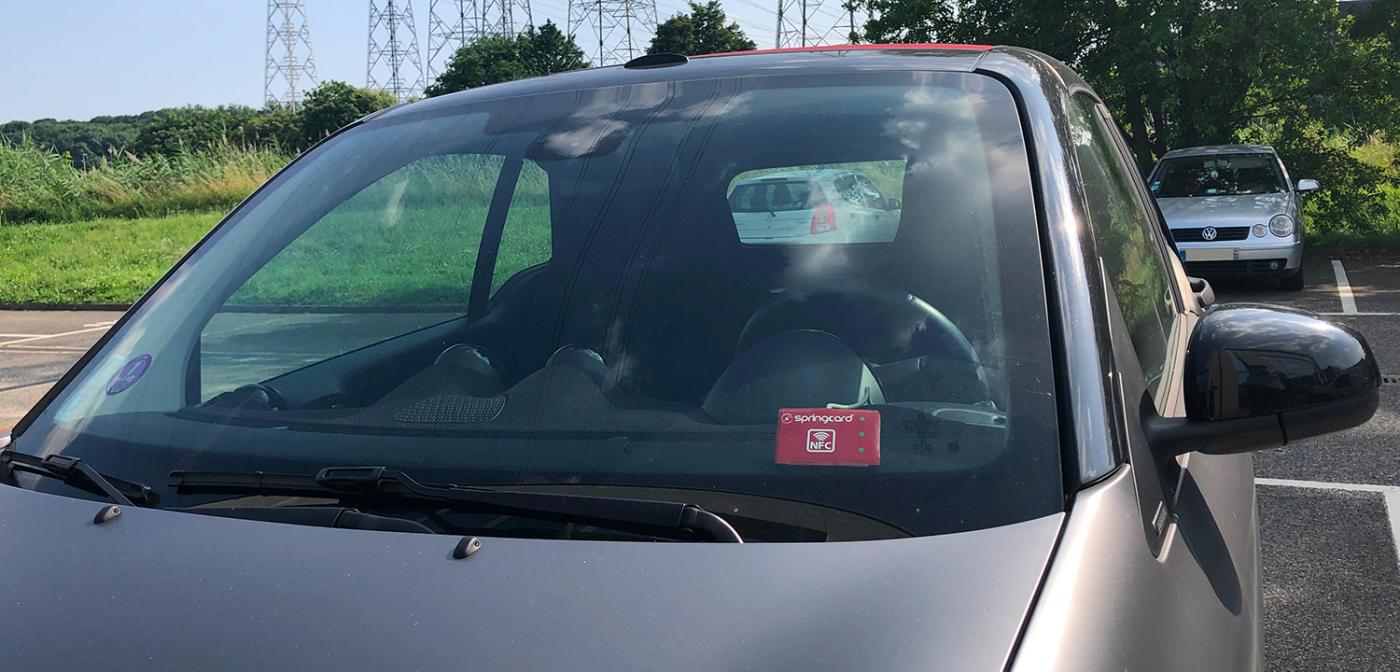

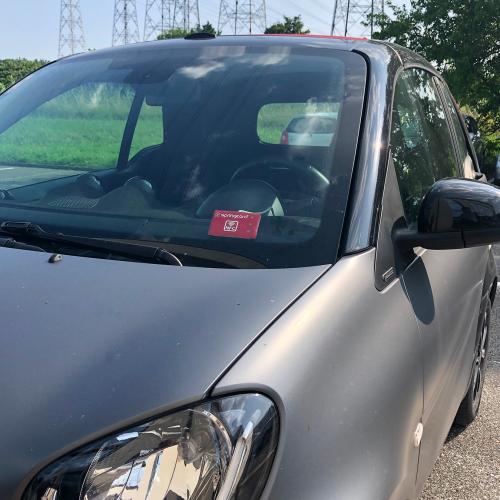

Its housing is slightly flexible and designed to be installed behind the windsceen or a lateral window.

It has automotive connections (Molex) and supports a wide range of power voltage (from 3.3V up to 24V DC). It has also a low power standby mode (LPCD) enabling the car central processing unit to sleep until the coupler says that a card is shown.

Here is a presentation of the Prox'n Drive in video.

KEY FEATURES

  • This product suits for automotive applications

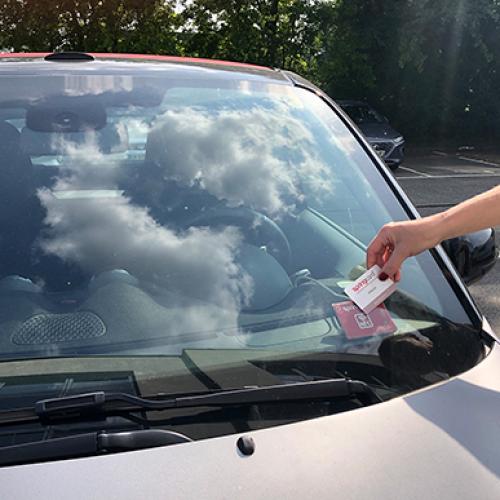

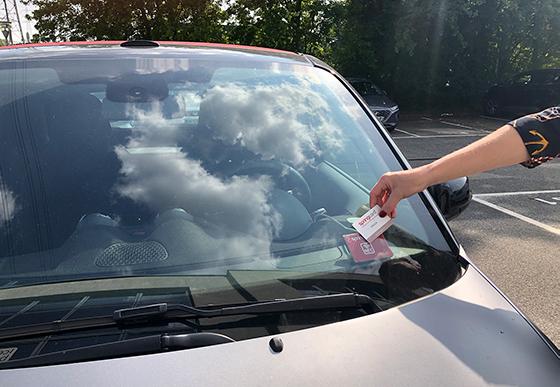

  • Reads cards and tags through windscreen and windows
  • Single cable and connector for both power and serial interface (RS-232)
  • 2-year limited warranty
  • RoHS & WEEE compliant (environmental protection)
Standards
  • Carrier frequency: 13.56MHz
  • ISO 14443 (1, 2, 3 and 4, both type A and type B): Proximity Coupling Device (PCD)
  • ISO 15693 (1, 2, 3): Vicinity Coupling Device (VCD) or Base Station for RFID labels and tags
  • ISO 21481 (ECMA 352): the device is able to communicate with any NFC object running in card emulation mode
  • ISO 18092 / NFC peer-to-peer (initiator, passive communication mode only)
  • Coupler's firmware embeds T=CL protocol (ISO-DEP), 256-byte frames
RF Bitrate
  • 106kbit/s (ISO 14443, NFC-A & NFC-B), 212 or 424kbit/s (FeliCa, NFC-F), 26kbps (ISO 15693, NFC-V)
Supported cards/tags/labels
  • ATMEL CryptoRF
  • ASK CTS256/CTS512
  • Calypso (CD97, CD21, GTML, etc), Innovatron radio protocol "14443 B'"
  • FeliCa Lite, Lite-S (NFC Forum T3T)
  • HID iClass, Inside PicoTag (UID only)
  • Infineon SLE66 family
  • Innovision Jewel, Topaz (NFC Forum T1T)
  • NXP Mifare UltraLight, NTAG (NFC Forum T2T), Mifare Classic, Mifare Plus, Desfire, SmartMX...
  • NXP ICODE-SLI family
  • ST MicroElectronics SR, SRI, SRIX families
  • ST MicroElectronics LR family
  • Texas Instrument my-d proximity
  • Texas Instrument my-d vicinity
  • Low power card detection mode (LPCD) to reduce power consumption while waiting for a contactless card
Antenna
  • Integrated
CSB4.8U Host interface
  • Serial over USB (virtual comm port)
  • SpringProx binary or ASCII protocol
Software integration / development
  • Free SDK featuring 'SpringProx API' (full ANSI C source code+ binary for Windows and Linux)
Power
  • Power: 9 to 24V DC
Connector
  • 6-pin Molex (serial link and power)
Firmware upgrade
  • In-field, no physical action on the device using SpringCard FUU application (provided that the RESET pin is controlled by the host)
