Prox’N’Roll HSP RFID Scanner OEM

Prox’N’Roll HSP RFID Scanner OEM

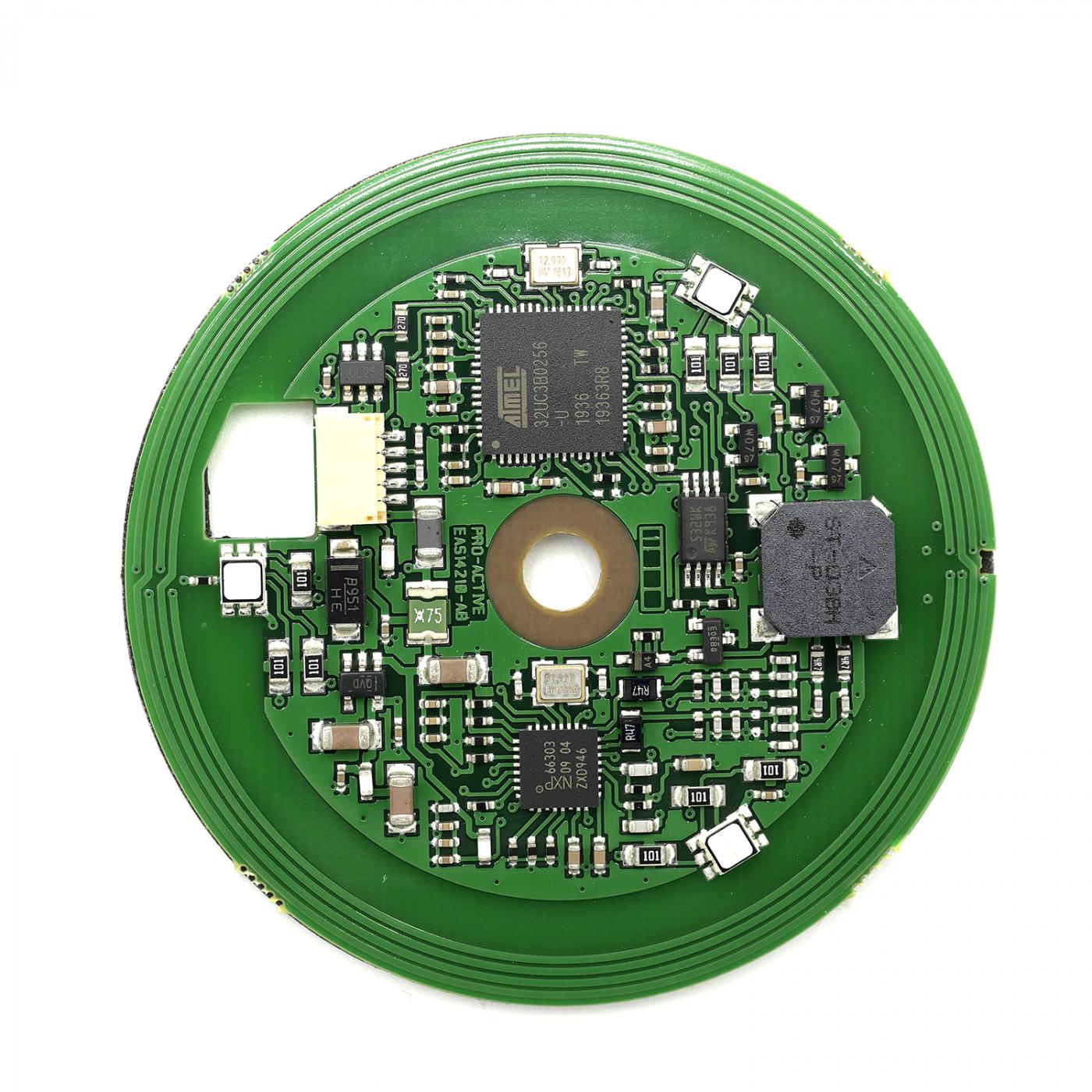

OEM USB 'smart reader' for contactless/RFID/NFC cards

The Prox’N’Roll HSP RFID Scanner OEM is a smart reader that enables to read badges, NFC cards or HF RFID labels as simply as a bar code.

Once you configure the ‘smart reader’ application aspect of the Prox’N’Roll HSP RFID Scanner OEM to reach precise cards data (number or text), whether a protocol serial number (UID), field contents or securized file they are, the Prox’N’Roll HSP RFID Scanner OEM is then stand-alone to do it: the computer receives data as if someone would type it on a keyboard.

The computer sees the Prox’N’Roll HSP RFID Scanner OEM as if it were a standard USB keyboard. So, no need to install any driver. Moreover, already installed applications commonly run without changing: just put the cursor in the input field you want to see data arriving!

To read and learn more about the RFID Scanners, click here.

Discover here the Prox'N'Roll RFID Scanner running in mountains...

ORDER CODE

Prox’N’Roll HSP RFID Scanner OEM (Azerty keyboard layout): SC16234

KEY FEATURES

  • No driver to install, no specific development to do
  • Supports up to 4 reading templates simultaneously

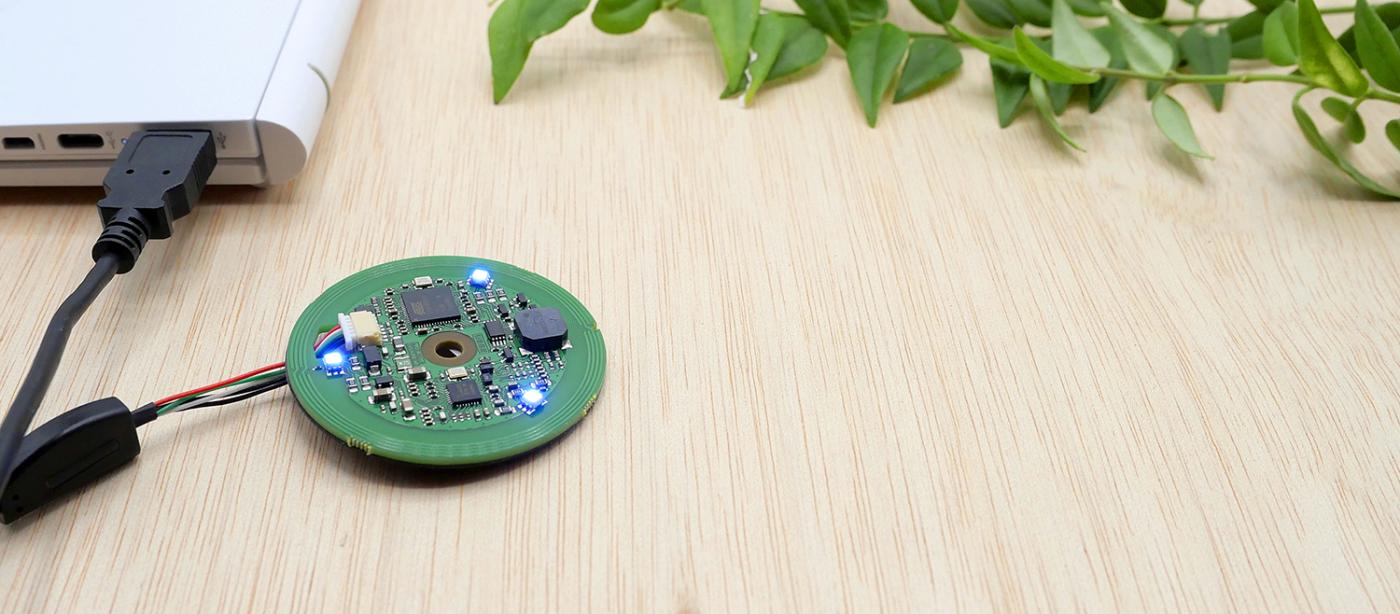

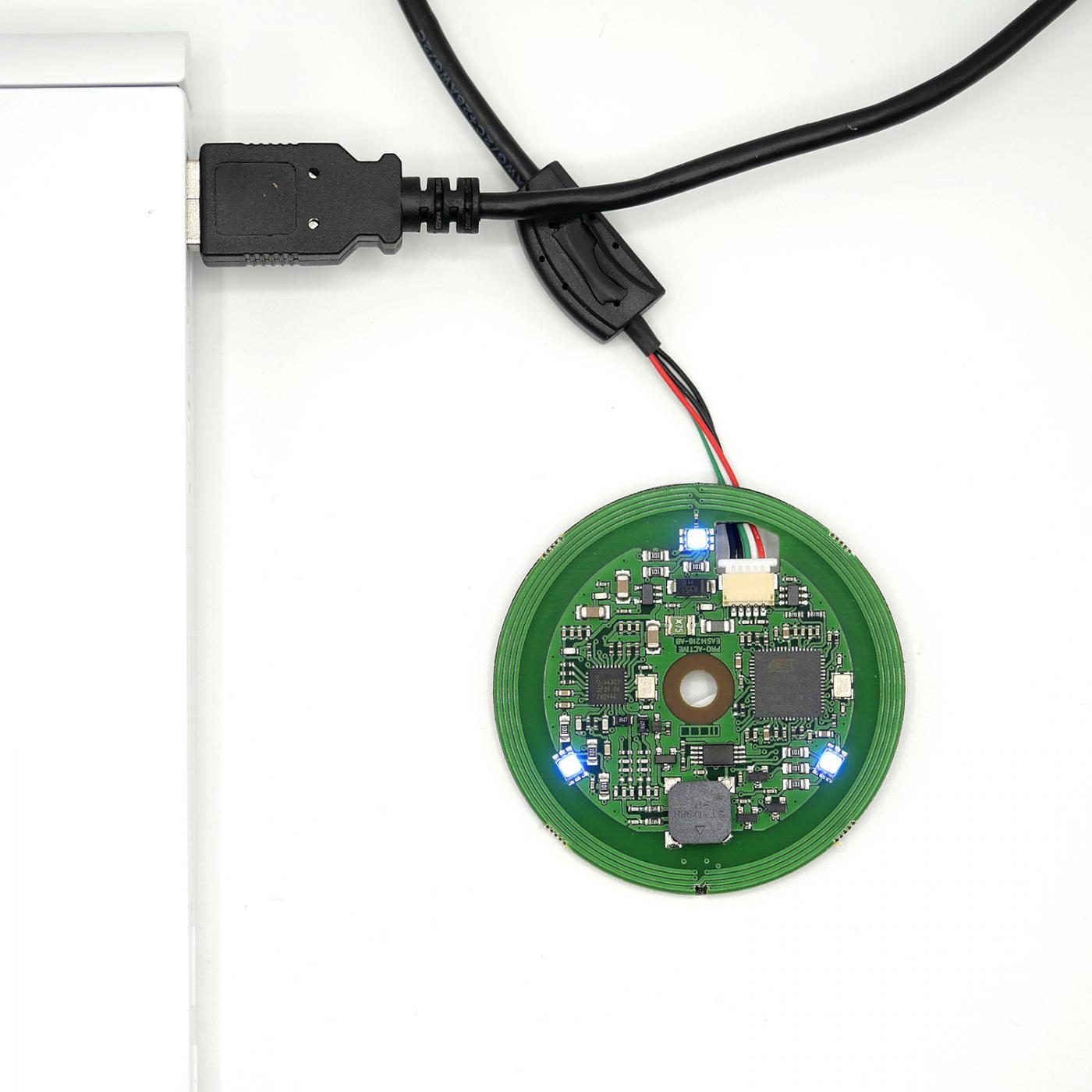

  • Directly powered by USB, cable included
  • High luminosity LEDs - buzzer
  • To be set up with Windows software (MultiConf) or securised master badge
  • 2-year limited warranty
  • RoHS & WEEE compliant (environmental protection)
Standards
  • Carrier frequency: 13.56MHz
  • ISO 14443 (1, 2, 3 and 4, both type A and type B): Proximity Coupling Device (PCD)
  • ISO 15693 (1, 2, 3): Vicinity Coupling Device (VCD) or Base Station for RFID labels and tags
  • ISO 21481 (ECMA 352): the device is able to communicate with any NFC object running in card emulation mode
RF Bitrate
  • 106kbit/s (ISO 14443, NFC-A & NFC-B), 212 or 424kbit/s (FeliCa, NFC-F), 26kbps (ISO 15693, NFC-V)
Supported cards/tags/labels
  • ASK CTS256/CTS512
  • ATMEL CryptoRF
  • Calypso (CD97, CD21, GTML, etc), Innovatron radio protocol "14443 B'"
  • FeliCa Lite, Lite-S (NFC Forum T3T)
  • HID iClass, Inside PicoTag (UID only)
  • Infineon SLE66 family
  • Innovision Jewel, Topaz (NFC Forum T1T)
  • NXP Mifare UltraLight, NTAG (NFC Forum T2T), Mifare Classic, Mifare Plus, Desfire, SmartMX...
  • NXP ICODE-SLI family
  • Texas Instrument my-d proximity
  • Texas Instrument my-d vicinity
  • ST MicroElectronics SR, SRI, SRIX families
  • ST MicroElectronics LR family
  • Thinfilm NFC Barcode
  • 4 processing templates to fetch data from the cards (UID, stored data, APDU response...)
Antenna
  • Integrated
Host interface
  • Serial - 38400 or 115200bps
  • RS-485 (differential - bus)
  • DataClock (ISO2), Wiegand or RS485
Power
  • Powered by USB (5V DC)
Connectors
  • USB type A, 1.8m cord
Firmware upgrade
  • In-field, no physical action on the device using SpringCard FUU application and Atmel USB DFU driver
Configuration
  • In-field configuration using secured "master cards"
