DuraScan D600

DuraScan D600

Independent Contactless Reader on battery power using Bluetooth Low Energy

Request yours today!

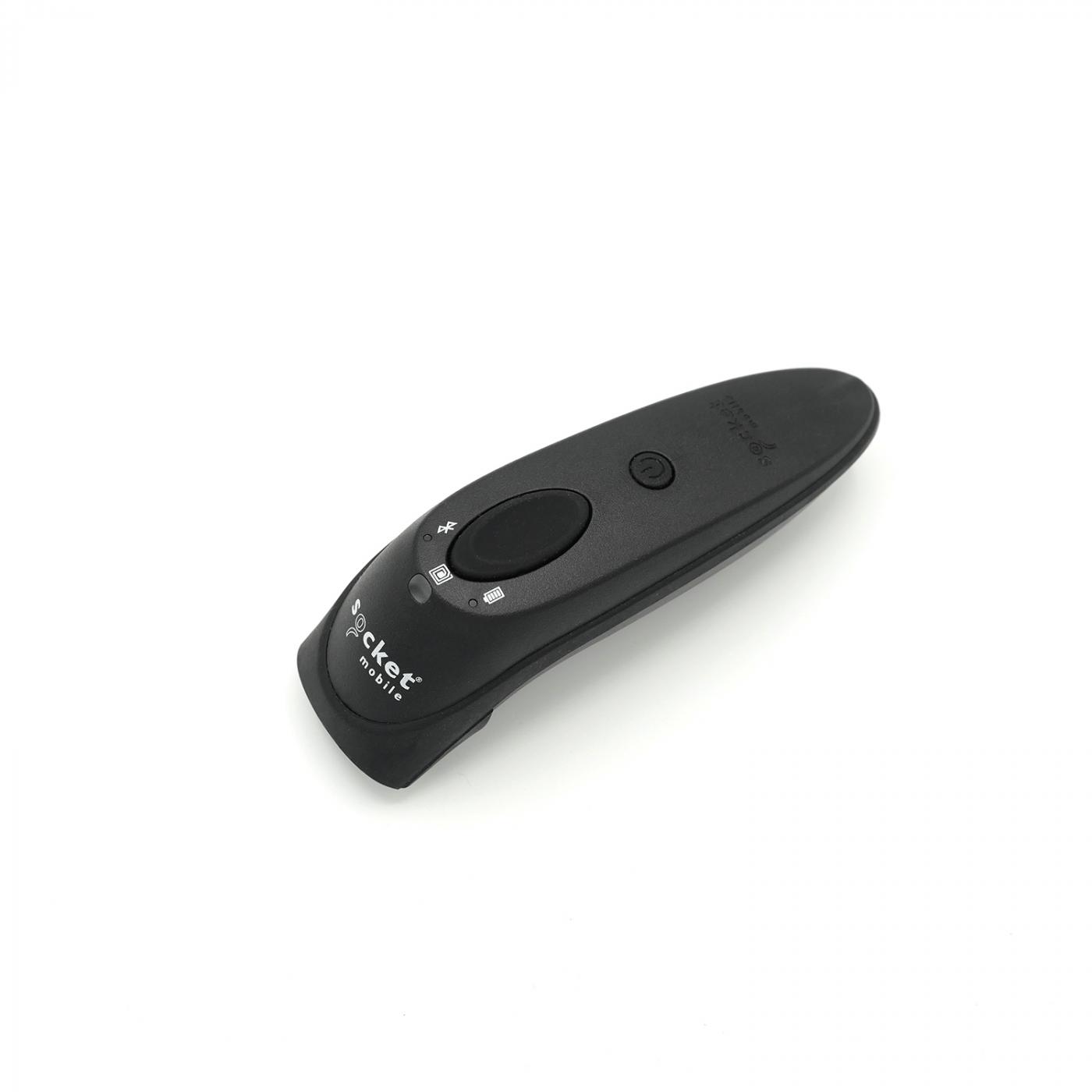

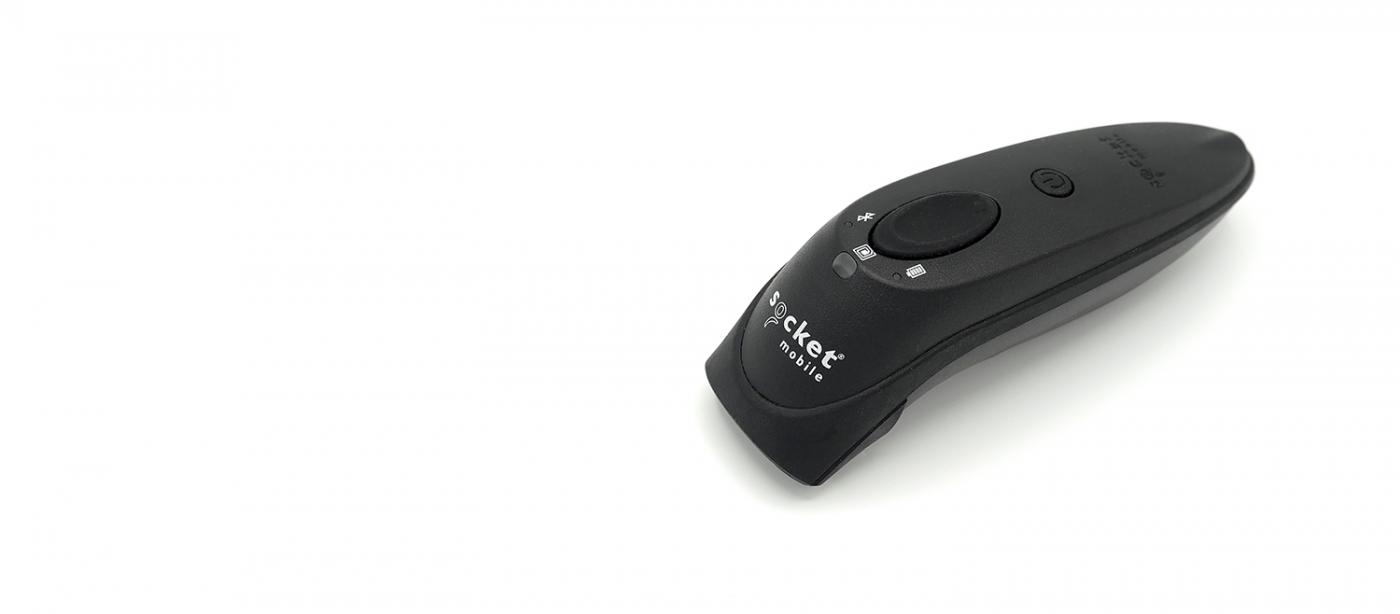

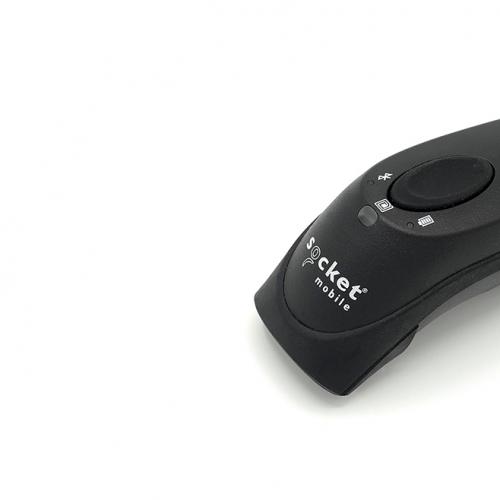

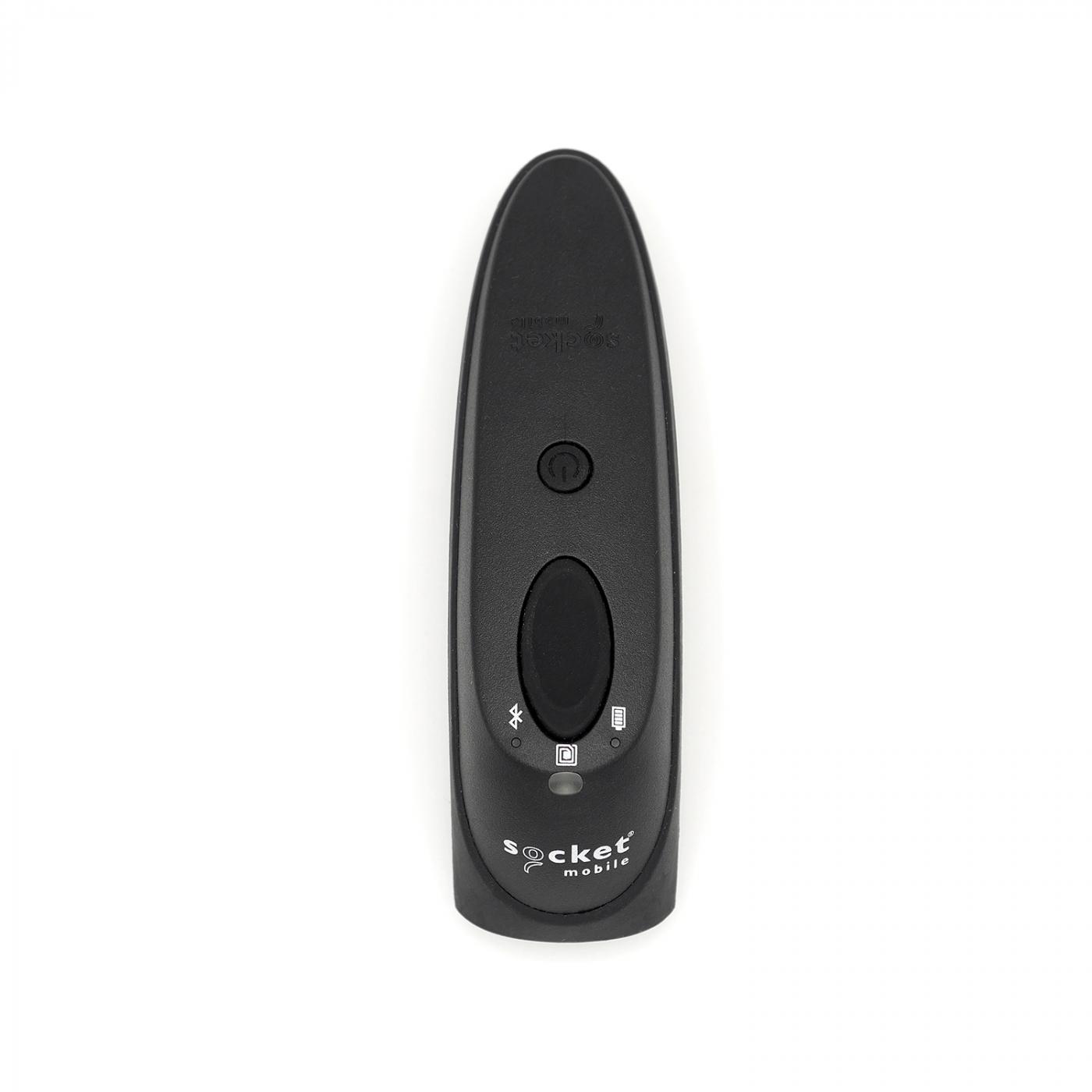

The DuraScan, D600 is a contactless reader/writer operating in RFID/NFC and using the Bluetooth Low Energy (BLE) to transfer data up to 330 ft (100 m).

It features great ergonomics fitting perfectly in your hand for comfortable and extended use. It is light and small enough to fit in your pocket.

The battery life, when the product is in standby,lasts over 30 hours. When the product is reading actively the battery life is about 70,000 reads within 9 hours or 14,000 reads within 16 hours.

It is compliant with iOS, Android or Windows devices with Bluetooth L.E.

It was built for harsh environments in warehouse, distribution and industrial manufacturing. This product is stylish enough to be showcased in shops and retail environments.

The DuraScan is based on our K663/RDR module, also called 'Smart reader', which has been reworked for Socket Mobile. A 'Smart reader' is a device combining a coupling device and embedded application software.

More informations about the DuraScan D600

The DuraScan D600 is more than a product it is a complete solution that you can configure easily.

* For thechnical support you will be redirected to Socket Mobile

KEY FEATURES

  • All-in-one solution to read or write on a contact or a smartcard
Standards
  • ISO 14443 (1, 2, 3 and 4, both type A and type B): Proximity Coupling Device (PCD)
  • ISO 15693 (1, 2, 3): Vicinity Coupling Device (VCD) or Base Station for RFID labels and tags
  • ISO 18092 / NFC peer-to-peer (initiator, passive communication mode only)
  • ISO 18000-3 Mode 3
  • Carrier frequency: 13.56MHz
RF Bitrate
  • 106, 212, 424 or 848kbit/s (ISO 14443, NFC-A & NFC-B), 212 or 424kbit/s (FeliCa, NFC-F), 26kbps (ISO 15693, NFC-V)
Supported cards/tags/labels
  • ASK CTS256/CTS512
  • ATMEL CryptoRF
  • Calypso (CD97, CD21, GTML, etc), Innovatron radio protocol "14443 B'"
  • FeliCa Lite, Lite-S (NFC Forum T3T)
  • HID iClass, Inside PicoTag (UID only)
  • Infineon SLE66 family
  • Innovision Jewel, Topaz (NFC Forum T1T)
  • NXP Mifare UltraLight, NTAG (NFC Forum T2T), Mifare Classic, Mifare Plus, Desfire, SmartMX...
  • NXP ICODE-SLI family
  • ST MicroElectronics SR, SRI, SRIX families
  • ST MicroElectronics LR family
  • Texas Instrument my-d proximity
  • Texas Instrument my-d vicinity
  • Thinfilm NFC Barcode
  • 4 processing templates to fetch data from the cards (UID, stored data, APDU response...)
  • Low power card detection mode (LPCD) to reduce power consumption while waiting for a contactless card
Antenna
  • Integrated
User manuals Utilitaire
