Contactless/RFID/NFC DataClock, Wiegand and RS-485 wall 'smart reader'

Request yours today!

The FunkyGate-DW NFC is a ‘smart reader’ fitting for physical access control applications. It can be set up for 4 different output protocol:

  • DataClock, ISO2 frame format
  • Wiegand, 32 bits frame format
  • ‘Simplified’ RS-485: the reader sends directly data to the badges as text
  • ‘Advanced’ RS-485 able to gather several readers in ‘bus’ configuration behind only one treatment unity

Once you set up the ‘smart reader’ application aspect of the FunkyGate-DW NFC to catch precise cards data (number or text), whether a protocol serial number (UID), field contents or securized file they are, the FunkyGate-DW NFC is then stand-alone to do it: the computer or the treatment unity then receives the data.

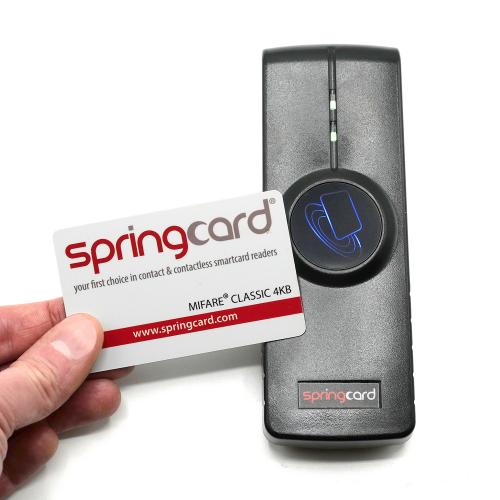

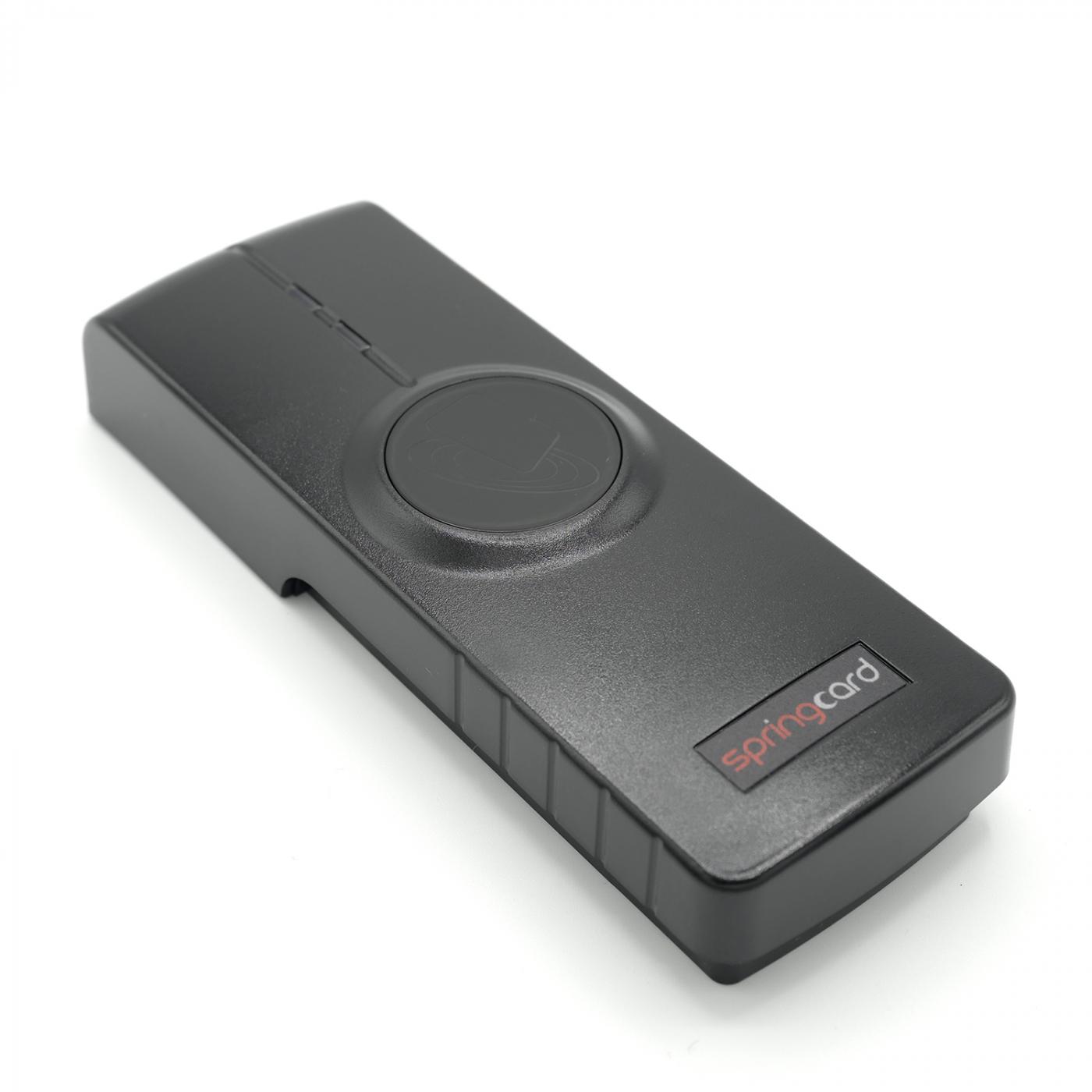

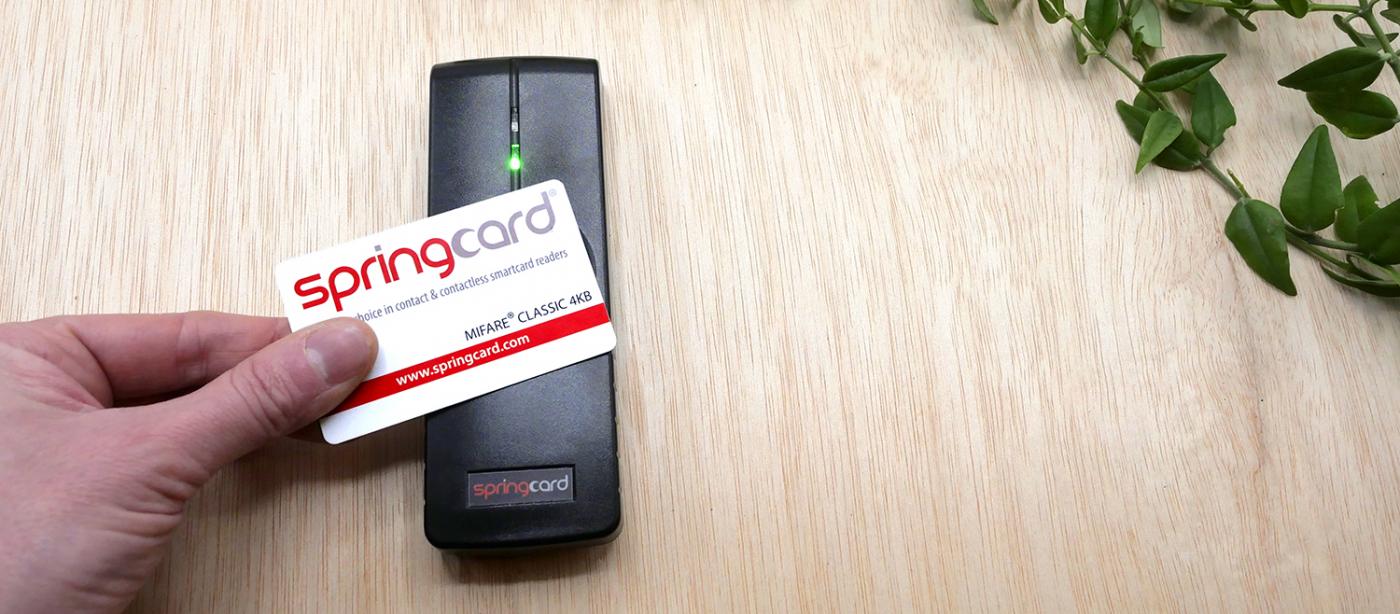

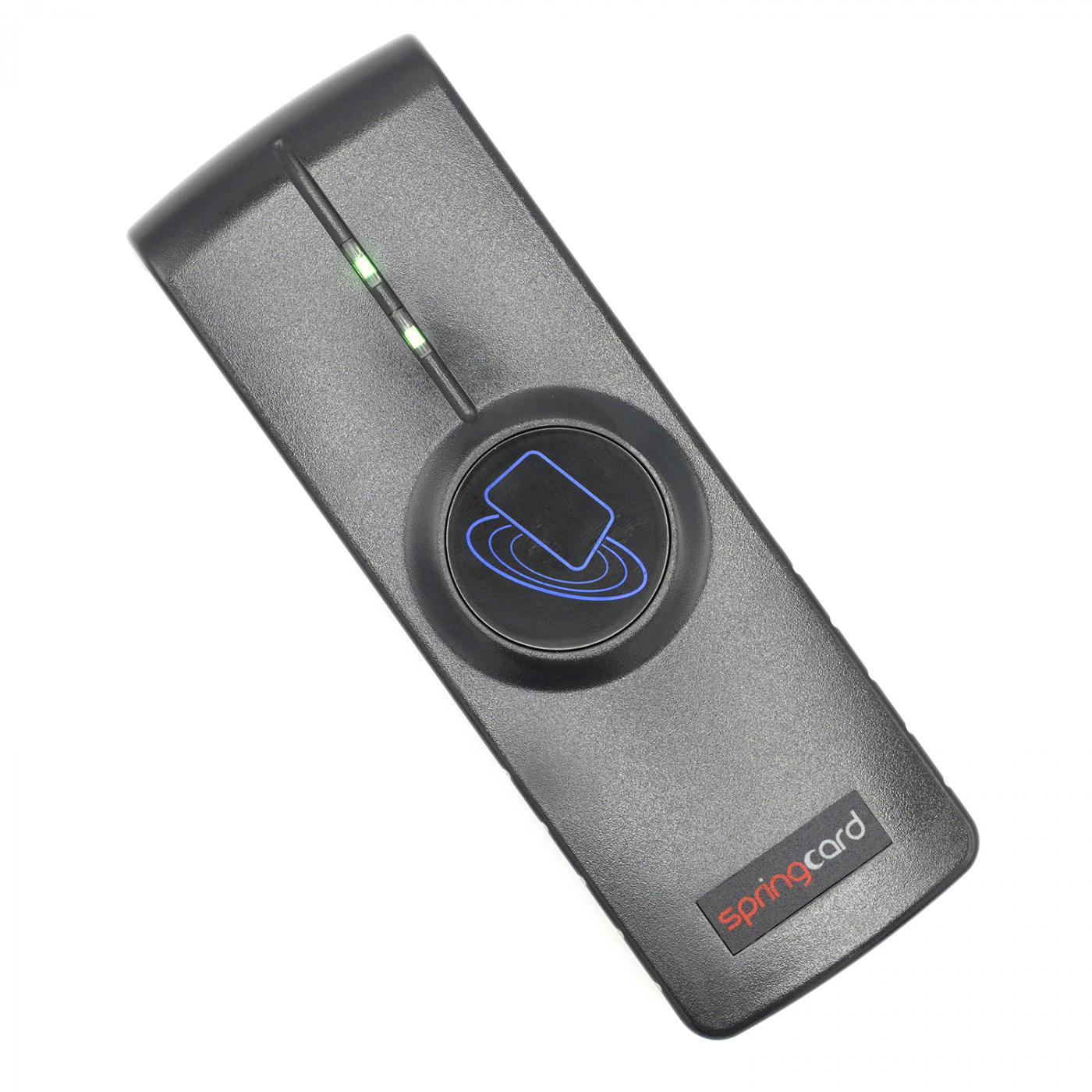

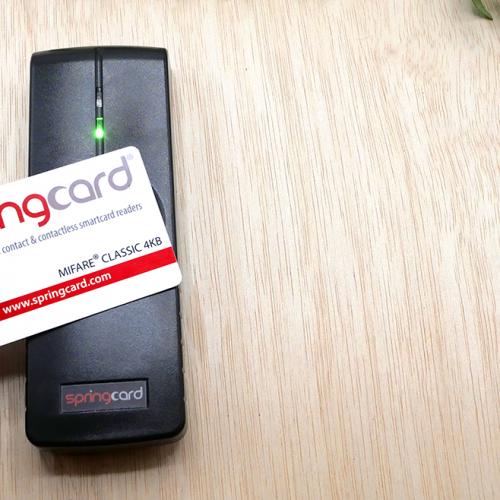

It is designed to be installed on a wall or a door frame. It has a buzzer and two red/green luminous lights. In addition to be an access control reader, the durable FunkyGate-DW NFC easily finds its place.

FIRMWARE UPGRADE

Link to Firmware Upgrade here.

Take a look at the way the FunkyGate helps you exercise !

Here is the presentation of the FunkyGate DW-NFC in video

KEY FEATURES

  • Supports almost all 13.56MHz badges used in companies
  • To be set up with Windows software (MultiConf) or securised master badge
  • Supports up to 4 reading templates simultaneously
  • Rugged wall-mount reader (identical shell for all the SpringCard wall readers)
  • 103x75x23mm
  • 2-year limited warranty
  • RoHS & WEEE compliant (environmental protection)
Standards
  • Carrier frequency: 13.56MHz
  • ISO 14443 (1, 2, 3 and 4, both type A and type B): Proximity Coupling Device (PCD)
  • ISO 15693 (1, 2, 3): Vicinity Coupling Device (VCD) or Base Station for RFID labels and tags
  • ISO 21481 (ECMA 352): the device is able to communicate with any NFC object running in card emulation mode
RF Bitrate
  • 106kbit/s (ISO 14443, NFC-A & NFC-B), 212 or 424kbit/s (FeliCa, NFC-F), 26kbps (ISO 15693, NFC-V)
Supported cards/tags/labels
  • ASK CTS256/CTS512
  • ATMEL CryptoRF
  • Calypso (CD97, CD21, GTML, etc), Innovatron radio protocol "14443 B'"
  • FeliCa Lite, Lite-S (NFC Forum T3T)
  • HID iClass, Inside PicoTag (UID only)
  • Infineon SLE66 family
  • Innovision Jewel, Topaz (NFC Forum T1T)
  • NXP Mifare UltraLight, NTAG (NFC Forum T2T), Mifare Classic, Mifare Plus, Desfire, SmartMX...
  • NXP ICODE-SLI family
  • Texas Instrument my-d proximity
  • Texas Instrument my-d vicinity
  • ST MicroElectronics SR, SRI, SRIX families
  • ST MicroElectronics LR family
  • Thinfilm NFC Barcode
  • 4 processing templates to fetch data from the cards (UID, stored data, APDU response...)
Antenna
  • Integrated
Host interface
  • DataClock (ISO2), Wiegand or RS485
Software integration / development
  • Free SDK for SpringCard access control readers
Power
  • Power: 9 to 24V DC

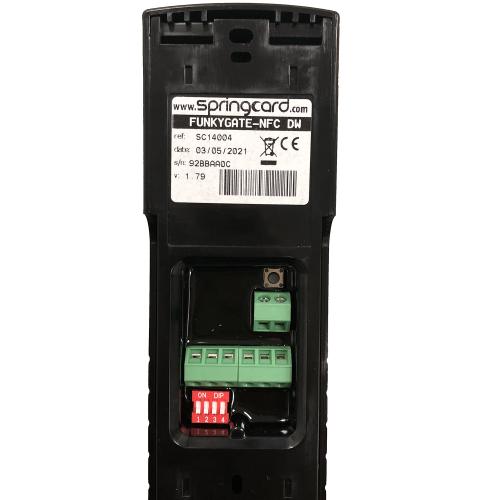

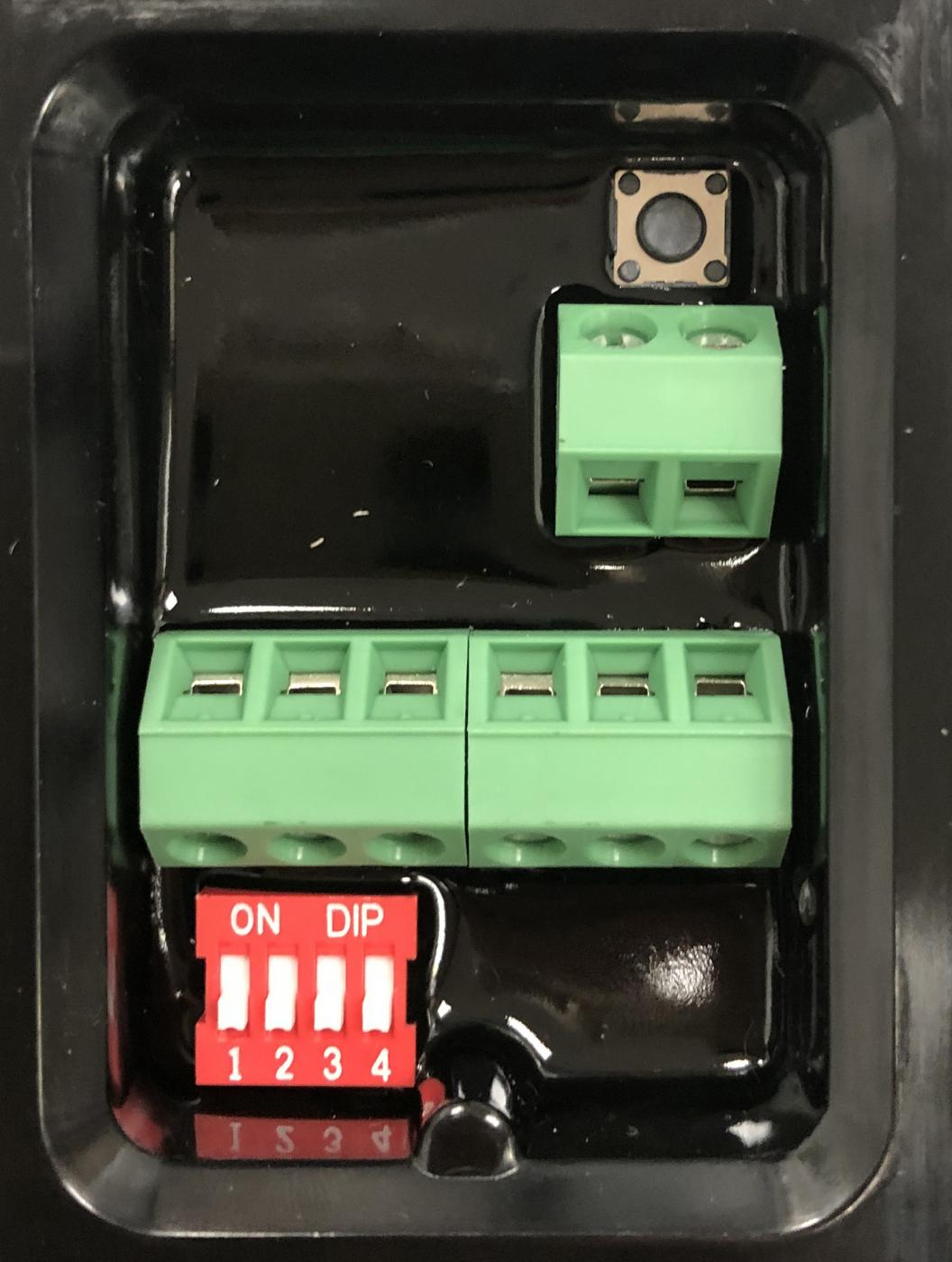

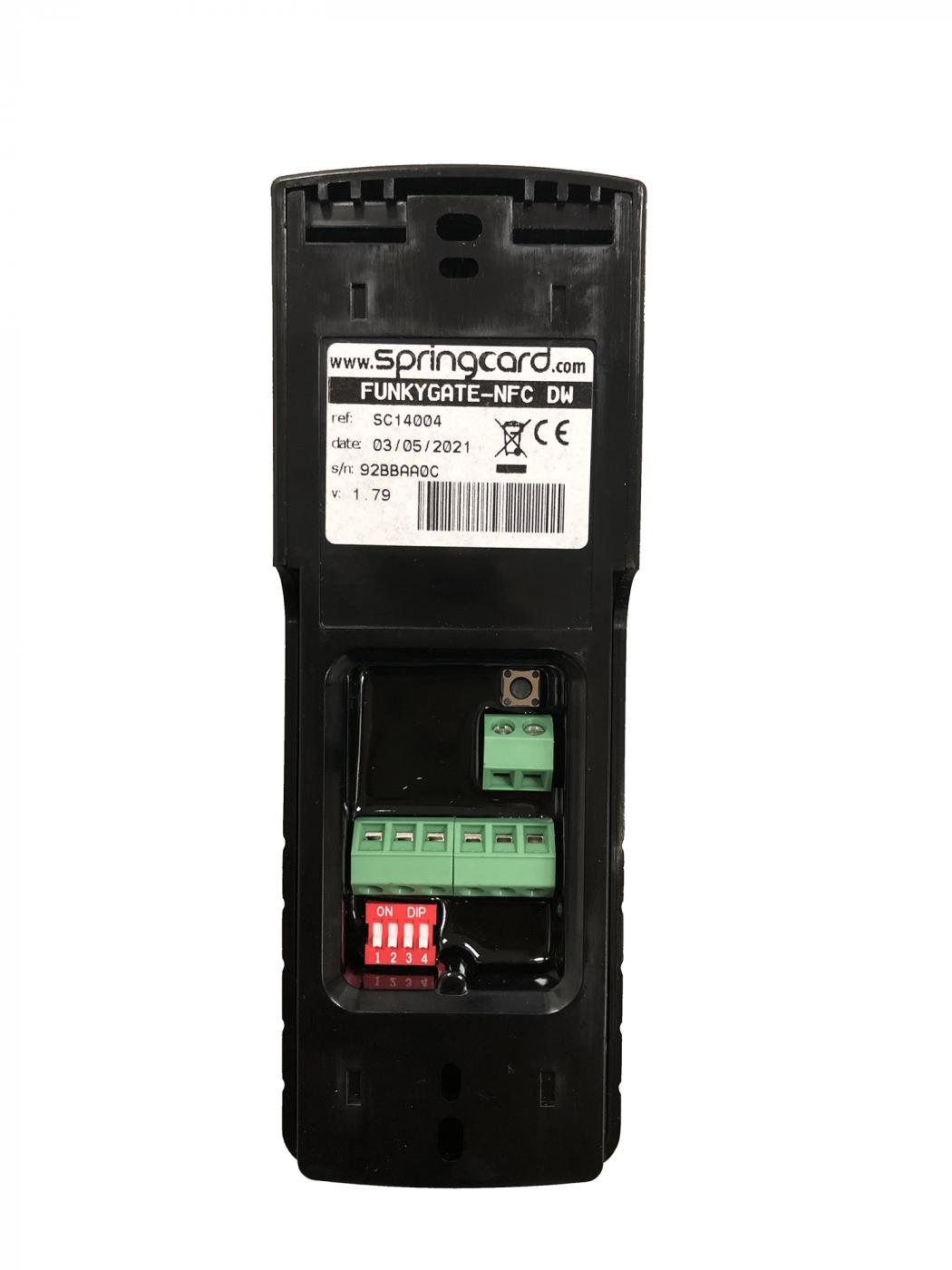

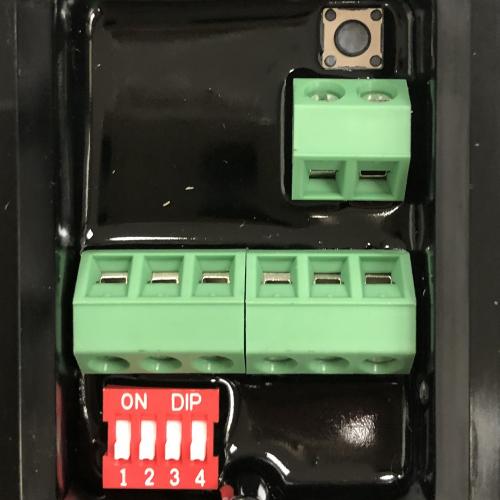

Connectors

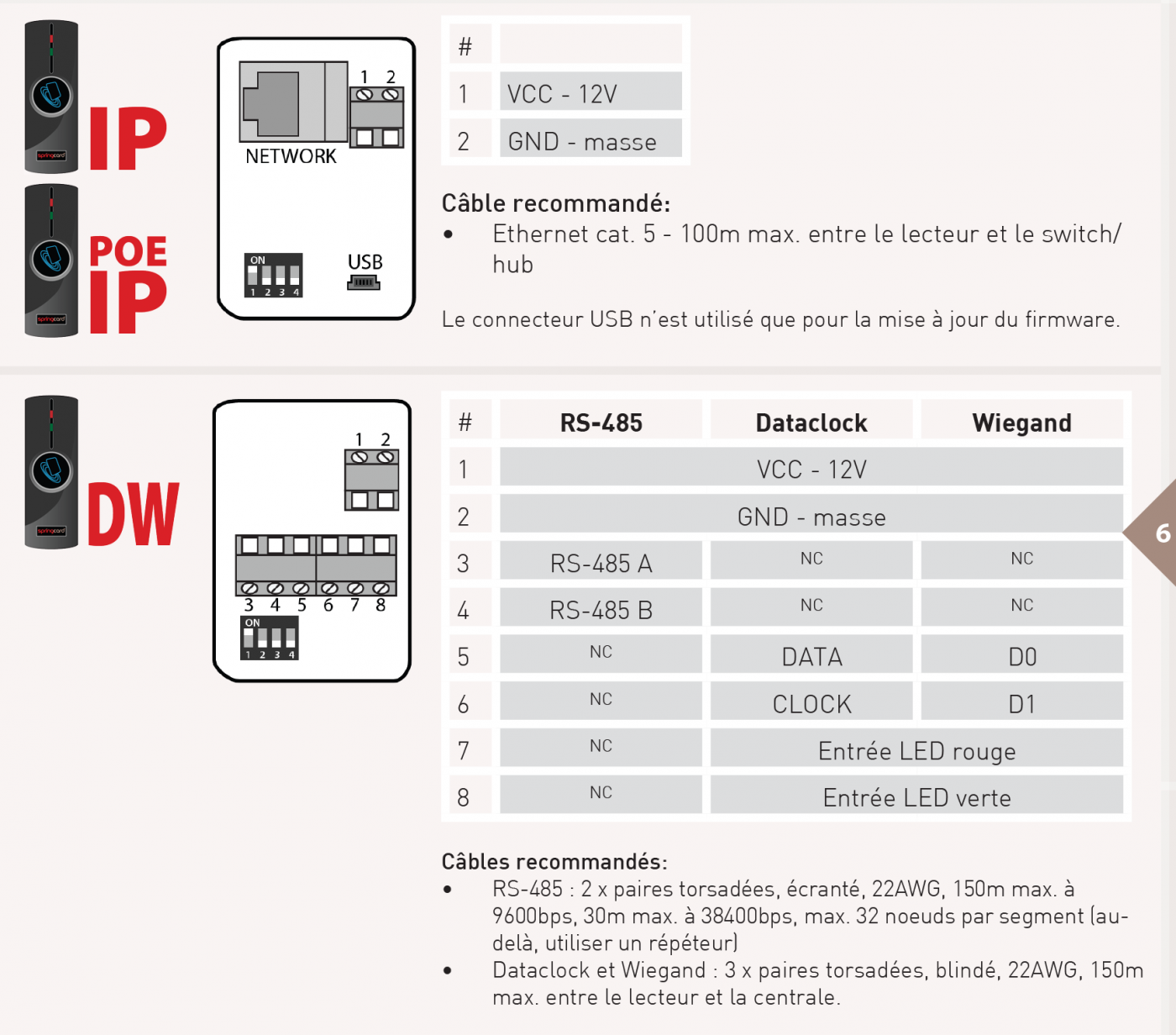

  • 8-point screw terminal (RS-485, DataClock/Wiegand, LED control)
  • 2-point screw terminal (power)
Firmware upgrade
  • Through RS-485, using Renesas FDT application
Configuration
  • In-field configuration using secured "master cards"
  • In-field configuration through serial link using SpringCard MultiConf application
